Place of Origin : Guangdong, China
Brand Name : Yetnorson
Model Number : YNX-TV-C0016
Type : Indoor
Frequency Range : UHF470~862
Working Frequency : UHF470~862
Gain : 28dBi
V.S.W.R : ≤1.5
Input Impendence (Ω) : 75
Suppy voltage : 3-5V
Max Input Power (w) : 50
film Size : 300*330mm

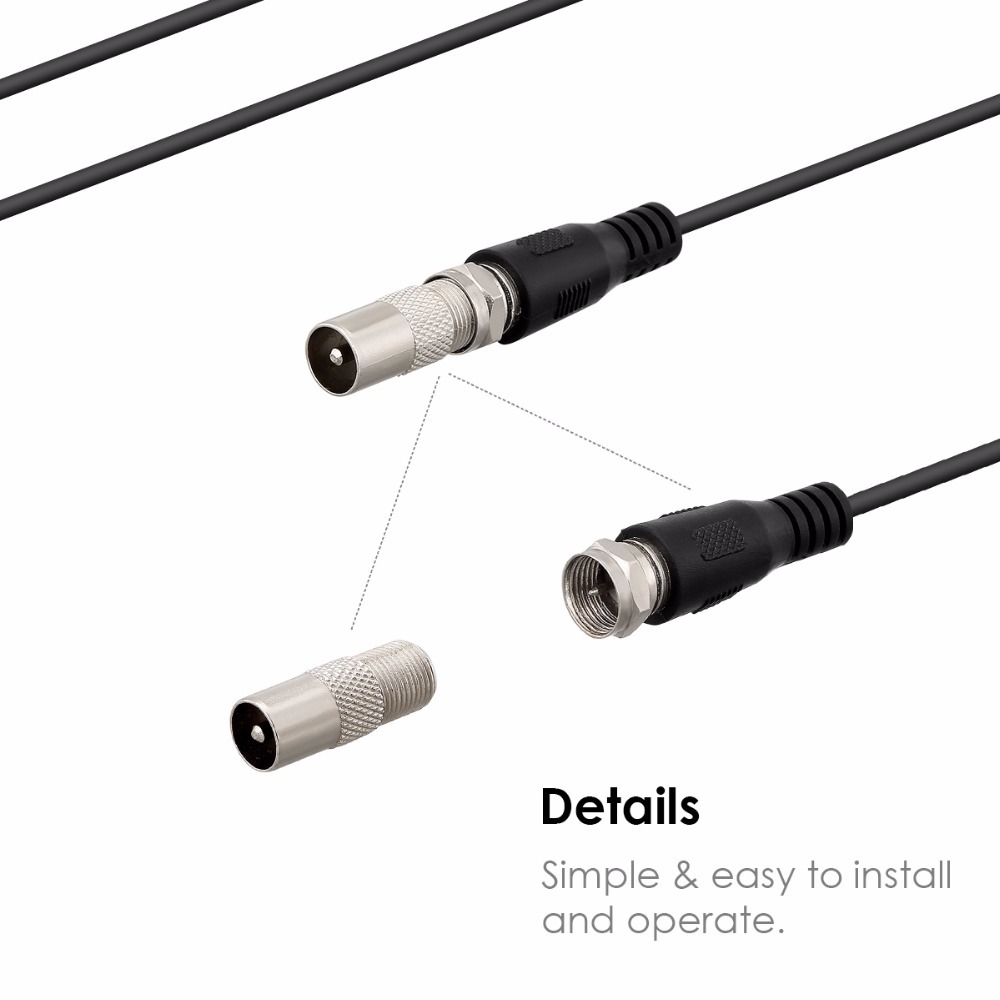

Connect Type : F male/IEC male(depend on your requiry )

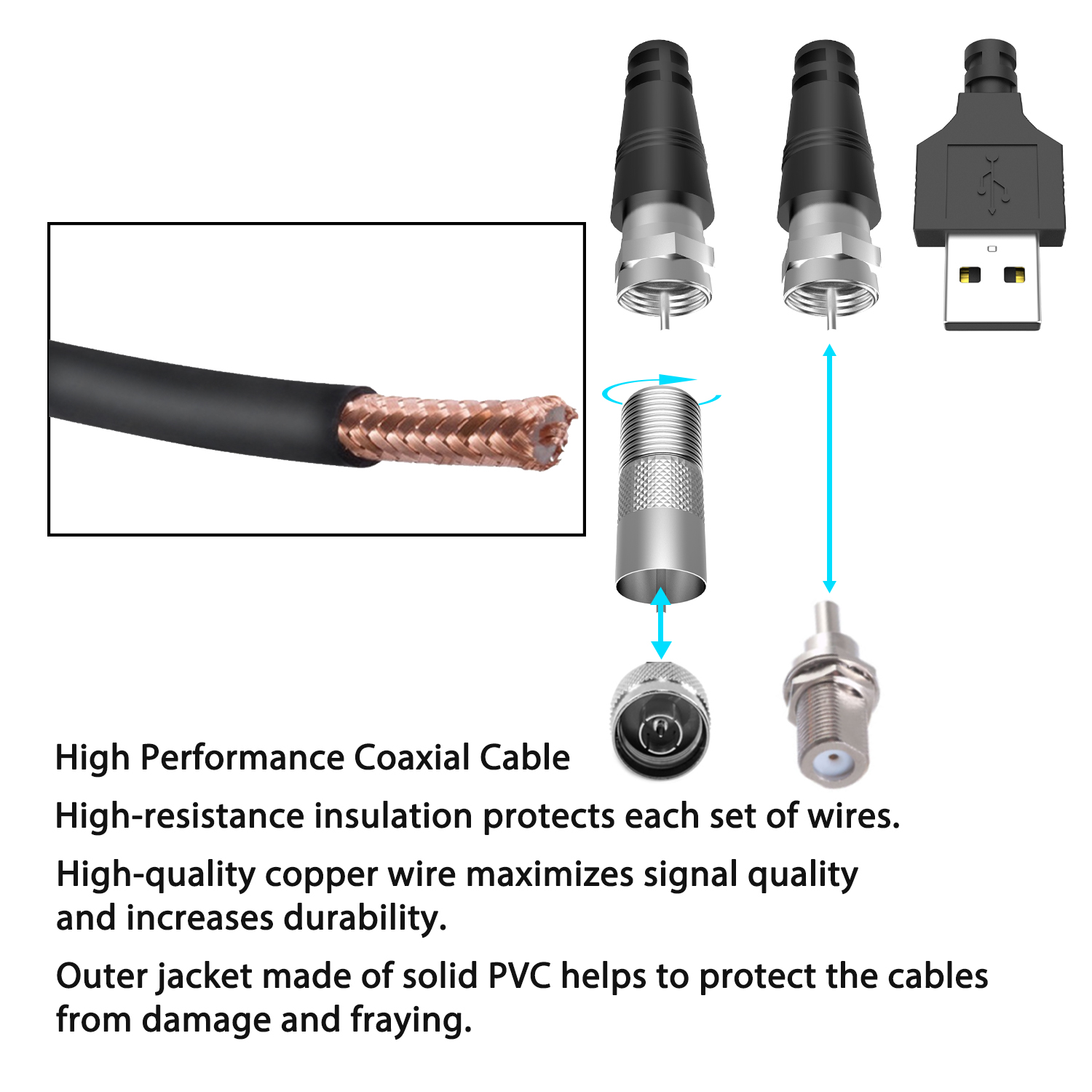

Cable : RG174
Product name : hd uhf digital omnidirectional tv antenna
Certification : FCC
Packaging Details : 1set per box, 20 boxes / cartons
MOQ : 2 pieces
Price : $3.87/pieces 2-99 pieces
Electrical Specifications | ||
Frequency Range (MHz) | 170-240/470-862 | |
Input Impendence (Ω) | 75 | |
Gain (dBi) | 30 | |
Consumption Electric(MA) | 20 | |
Supply Voltage(V) | 5 | |
V.S.W.R | ≤1.5 | |
Mechanical Specifications | ||
Antenna Length (mm) | 330/230 | |
Antenna Width (mm) | 300/200 | |
Cable (mm) | 3000 or as customer's requirements | |
Connector type | F or IEC | |
Mounting | Paste | |
Gross Weight(g) | 30 |

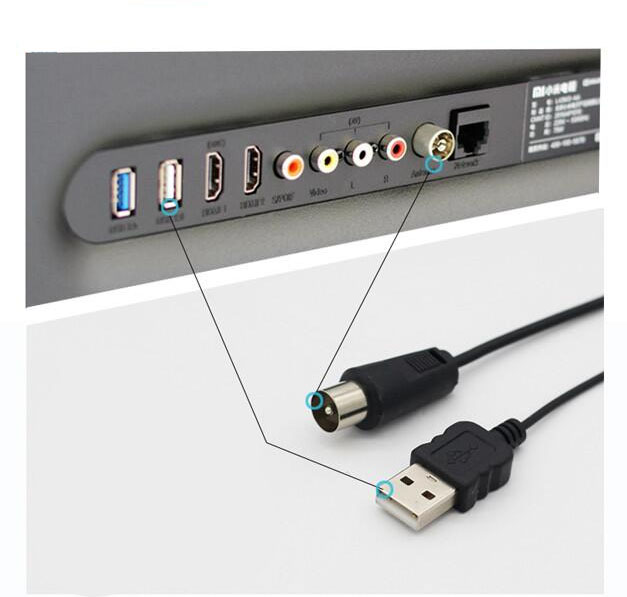

Use demonstration
US or EU Standard charger (For option, Charger price please negotiate with our Salesmen)
✿Specifications:
Working Frequency : VHF(170-240Mhz) \ UHF(470-860Mhz) Compatible with 720p, 1080i, 1080p/ ATSC
Impedence : 75 Ω
LNA Gain : 30dBi
Connectors : F Male
Reception Range: 75 miles
Size:330*300*0.6mm
Cable : 1.5C-2V / Black L=5M
Voltage : 5V
✿Before purchasing our antenna please visit https://www.tablotv.com/tools/ (only support North Americian area to check) to make sure which HDTV channels can you get
.
You can only receive channels within the 75 mile radius and mountainous and heavily treed areas will reduce the range considerably.
1) Connect the coaxial cable on the antenna to the amplifier.
2) Place the antenna, preferably on a window or as high as possible.
3) Connect the HDMI cable from the amplifier to the TV.
4) Go to input on your TV and make sure it is set for TV
5) Go to the menu on your TV and make sure it is set for "air" or "antenna", whichever you TV menu has.
6) In the menu on your TV go to "Scan for Channels" or "Channel Scan" etc., select "ok" and scan. This may take up to 20 minutes to complete.
✿Troubleshooting tips:
1) If after scanning for channels you do not receive any channels move the antenna to a different location and do another channel scan.
2) Make sure your input is set to TV
3) Check all connections
If after doing all the above correctly and you are still unable to receive channels, Please email us.

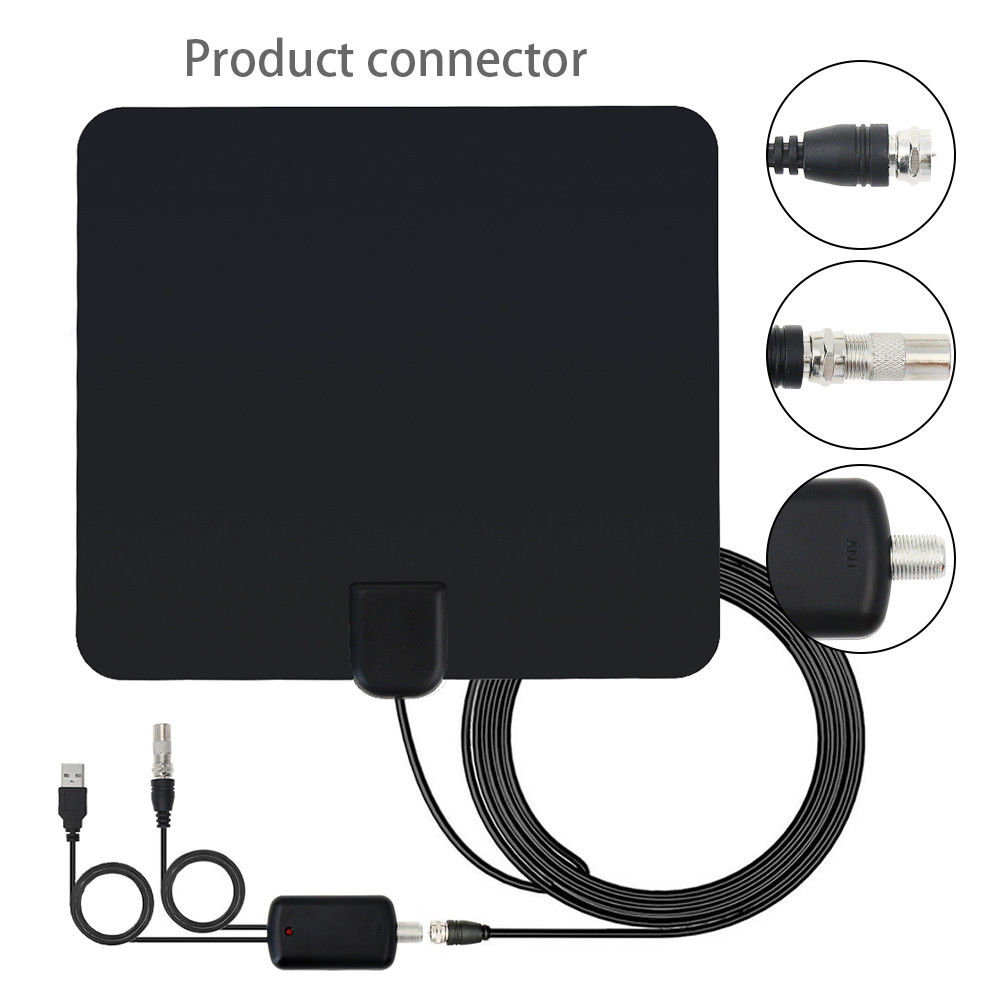

✿Accessories in Packing list:
1. Indoor HDTV antenna with 2+1=3 meter coax cable
2. . Detachable Amplifier
3. Stickers * 2 pcs
4. User manual
5. US or EU standard charger head ( you can place order on this link directly, but the charger not in shipping package, if you need charger, please contact us to get the charger price)
![]() |
